OEM Customized Wafer Butterfly Valve - Wafer Butterfly Valve – Hongbang Detail:

OK-701-HANDLE

123

NO. PART Choose QTY
1 BODY CI/DI 1
2 SEAT EPDM/NBR/VITON/PTFE 1
3 DISC DI+NP/CF8/CF8M/AL-B 1
4 STEM 416/431/304/316/17-4PH 2
5 BUSHING PTFE/BRASS 5
6 O-RING NBR 3
7 LEVER CAST/ALUMINUM 1
TEST PRESSURE   SHELL SEAL
HYDROSTATIC 2.4 MPa 1.76 MPa
STANDARD DESIGN CODE API 609/EN 593
INSPECTION & TEST API 598/EN 12266
END STANDARD PN10/16 150LB 10K
FACE TO FACE API 609/EN 558

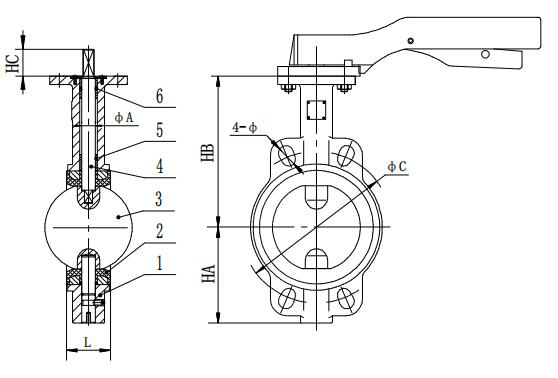

1313

GENERAL CHARACTERISTICS

Design according with API 609/EN 593
Tightness in both ways. Lug type with threaded ears
Flexible sleeve adapted to the shape of the body assures low operating torque. High and low semi stem giving a high flow coefficient, machined disc on periphery giving a low and regular torque. Unejectable stem, mounting flange according to ISO 5211.

STANDARDS

Manufacture according to the requirements of the European
directive 2014/68/EU «Equipment under pressure»: modulate H. Face to face according to standards NF EN 558 serie 20, ISO 5752 série 20, DIN 3202.
Mounting with flanges PN10/PN16/150LB/10K from DN50 to DN600 from DN200 to DN300 according to API 609/EN 1092-2.
Pressure test according to standards API 609/EN 12266-1, DIN 3230, BS 6755 and ISO 5208

Size H1 H2 L HC φ C
2″/DN50 66 130 43 32 PN10/16 150LB 10K
2-1/2″/DN65 75 140 46 32 PN10/16 150LB 10K
3″/DN80 95 150 46 32 PN10/16 150LB 10K
4″/DN100 105 170 52 32 PN10/16 150LB 10K
5″/DN125 122 180 56 32 PN10/16 150LB 10K
6″/DN150 134 205 56 32 PN10/16 150LB 10K
8″/DN200 168 235 60 36 PN10/16 150LB 10K
