One of Hottest for Epdm Butterfly Valve - Grooved End Butterfly Valve – Hongbang Detail:
OK-711-SIGNAL
| NO. | PART | Choose | QTY | |
| 1 | BODY | DI | 1 | |
| 2 | SEAT | DI | 1 | |
| 3 | DISC | DI+EPDM | 1 | |
| 4 | STEM | 416 | 2 | |
| 5 | BUSHING | PTFE | 5 | |
| 6 | O-RING | NBR | 3 | |
| 7 | GEAR | SIGNAL GEAR BOX | 1 | |
| TEST PRESSURE | SHELL | SEAL | ||
| HYDROSTATIC | 2.4 MPa | 1.76 MPa | ||
| STANDARD | DESIGN CODE | API 609/EN 593 | ||
| INSPECTION & TEST | API 598/EN 12266 | |||
| END STANDARD | PN16 150LB | |||
| FACE TO FACE | API 609/EN 558 | |||
GENERAL CHARACTERISTICS
Design according with API 609/EN 593
Tightness in both ways. Lug type with threaded ears
Flexible sleeve adapted to the shape of the body assures low operating torque. High and low semi stem giving a high flow coefficient, machined disc on periphery giving a low and regular torque. Unejectable stem, mounting flange according to ISO 5211.
STANDARDS
Manufacture according to the requirements of the European directive 2014/68/EU «Equipment under pressure»: modulate H. Face to face according to standards NF EN 558 serie 20, ISO 5752 série 20, DIN 3202.
Mounting with flanges PN16/150LB from DN50 to DN600 from DN200 to DN300 according to API 609/EN 1092-2.
Pressure test according to standards API 609/EN 12266-1, DIN 3230, BS 6755 and ISO 5208

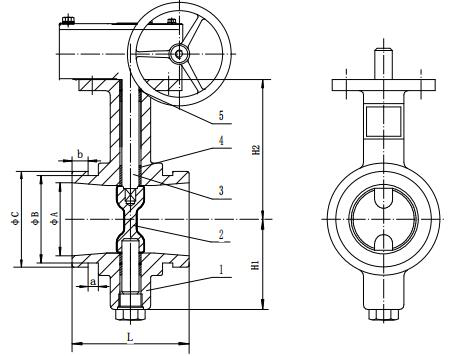

| Size | H1 | H2 | L | φ A | φ C | ||
| 2″/DN50 | 70 | 100 | 82.4 | 50 | PN16 150LB | ||
| 2-1/2″/DN65 | 75 | 106 | 96.8 | 61 | PN16 150LB | ||
| 3″/DN80 | 82 | 113 | 96.8 | 80 | PN16 150LB | ||
| 4″/DN100 | 100 | 135 | 115.8 | 101 | PN16 150LB | ||
| 5″/DN125 | |||||||
| 6″/DN150 | 130 | 176 | 147.6 | 150 | PN16 150LB | ||
| 8″/DN200 | 162 | 204 | 133.4 | 202 | PN16 150LB | ||
