Grooved End Butterfly Valve

Short Description:


Product Detail

Product Tags

OK-711-SIGNAL

123

NO. PART Choose QTY
1 BODY DI 1
2 SEAT DI 1
3 DISC DI+EPDM 1
4 STEM 416 2
5 BUSHING PTFE 5
6 O-RING NBR 3
7 GEAR SIGNAL GEAR BOX 1
TEST PRESSURE   SHELL SEAL
HYDROSTATIC 2.4 MPa 1.76 MPa
STANDARD DESIGN CODE API 609/EN 593
INSPECTION & TEST API 598/EN 12266
END STANDARD PN16 150LB
FACE TO FACE API 609/EN 558

fs

GENERAL CHARACTERISTICS

Design according with API 609/EN 593
Tightness in both ways. Lug type with threaded ears
Flexible sleeve adapted to the shape of the body assures low operating torque. High and low semi stem giving a high flow coefficient, machined disc on periphery giving a low and regular torque. Unejectable stem, mounting flange according to ISO 5211.

STANDARDS

Manufacture according to the requirements of the European directive 2014/68/EU «Equipment under pressure»: modulate H. Face to face according to standards NF EN 558 serie 20, ISO 5752 série 20, DIN 3202.
Mounting with flanges PN16/150LB from DN50 to DN600 from DN200 to DN300 according to API 609/EN 1092-2.
Pressure test according to standards API 609/EN 12266-1, DIN 3230, BS 6755 and ISO 5208

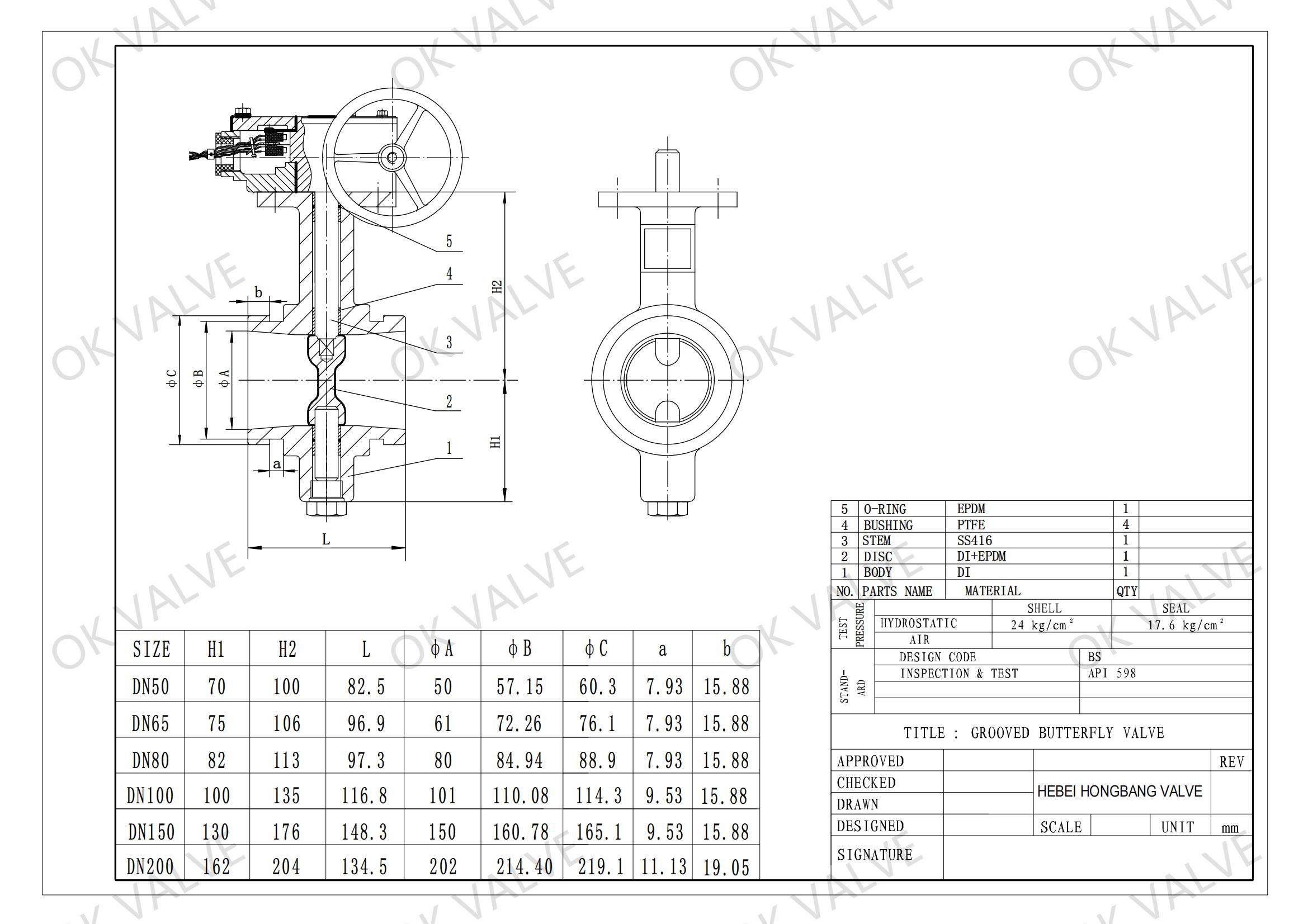

Size H1 H2 L φ A φ C
2″/DN50 70 100 82.4 50 PN16 150LB
2-1/2″/DN65 75 106 96.8 61 PN16 150LB
3″/DN80 82 113 96.8 80 PN16 150LB
4″/DN100 100 135 115.8 101 PN16 150LB
5″/DN125
6″/DN150 130 176 147.6 150 PN16 150LB
8″/DN200 162 204 133.4 202 PN16 150LB
